FET/500 - Build and Calibration Guide

Posted by Hairball Admin on Jul 01 filed in Build Guides

Bill of Materials The Bill of Materials (BOM) is a list of all the components and hardware needed to complete your build.  It includes information like component values and location designations.  If you have not done so already, click the link below to access the FET/500 BOM and build map for you Revision.

Revision A
Revision D
Revision F
Meter Board

Note: When reading the BOM leading zeros are used for sorting purposes.  Ignore all leading zeros.

Example:

R002 = R2 on PCB
R020 = R20 on PCB

Another Note:  This is a new build and though we triple check our BOMs and build maps, mistakes happen.  As you stuff your PCB please double check the values against the MNATS.NET Overlay, Schematic, Bill of Materials PDFs.  If you find any discrepancies, please let us know by email.  There are a few discrepancies that are OK:

  • Anywhere the MNATS guide indicates 1N4148 diodes, we've used the equivalent 1N914 diodes
  • Anywhere the MNATS guide indicates a 200pF capacitor, we've used the modern value 220pF capacitor
  • On the Rev D we've subbed C17 from a 22uF to a 1uF to match the original schematic

kit

All the parts listed in the BOM will be included in your kit.  The kits include the following boxes:

Revision Kit:  This box is labeled either Rev A, Rev D, or Rev F.  It includes the components used for your particular revision build.
Meter Kit:  This box includes all parts needed to build the meter PCB.
Hardware: This box includes all hardware needed to mount the PCB and output transformer.
Transformers: This box contains the input and output transformers for you build.
PCB Envelope  This includes your main and meter PCB, an L-bracket, aluminum faceplate, and PCB faceplate jig will also be included in your box.

In addition to the BOM and components, you'll want to grab your soldering iron, solder, digital multimeter (DMM), lead trimmers, and a lead forming tool or needle nose pliers. The lead forming tool shown below is Mouser part 5166-801, but a pair a needle nose pliers will work just as well.

FIG 4-

Before You Begin

Before you start, make sure you have the proper PCB for your build (we make mistakes).

Revision A: Blue PCBs
Revision D: Black PCBs
Revision F: Red PCBs

It will also help your build go smoothly if you read through this complete guide before you begin.  In addition, look over your kit and see if you are missing any components. If you have a newer API Rack with DB25 connectors, please read the "500 Series Racks with Pin 6 Link Connected By Default" section at the bottom of the page for instructions on a small modification you should perform to your PCB.

Resistors

Resistors - make sure you use both the basic kit and your element kit specific components.

Components are generally stuffed from shortest to tallest for easiest assembly.  Let's start with resistors since they are small and account for many of the on-board components. Take your time, soldering resistors is easy, but misplacing a 270Ω for a 270KΩ resistor is not an easy thing to sort out when your build doesn’t work right.  Test each resistor with your DMM resistance (Ω) setting before soldering it in place.  You'll rest easy later on.

I know my resistor color band codes, but I’ve checked this 150KΩ resistor anyway.  Not only have I double checked with my eyes, I’ve confirmed it’s working correctly. Resistors are not polarized.  You can insert them in either direction.  Take your time (really, please TAKE YOUR TIME), the extra time now can save you hours or days of troubleshooting.

When inserting resistors, it's good practice to mount the resistors color codes in the same direction.  Meaning all of the color codes would read right to left or up to down.  This is not necessary and does not effect your builds performance however, it will make things a lot easier if you have an issue and need to go back and confirm the resistor values by reading the color codes. When installing components, bend the leads at 45 degree angle to keep it in place.

Leads bend after inserting.   If the leads are long, trim them shorter to avoid the long leads acting like a heat sink.

Leads bend after inserting. If the leads are long, trim them shorter to avoid the long leads acting like a heat sink.

After soldering trim the leads down to the solder.  Notice how we didn't use a ton of solder.  Less is more!

After soldering, trim the leads down to the solder. Notice how we didn't use a ton of solder. Less is more! Some resistors in the revision A and revision D side-chain are vertically mounted.  This is done when space is limited.  To mount these resistors, take your finger and bend one of the leads over into a J shape.

Bent Resistor.  Try not to bend too close to the body.

Bent Resistor. Try not to bend too close to the body. These resistors are installed vertically.  One of the pads will have a circle around it. This indicates that this is the pad in which the unbent lead should be inserted and where the body touches the PCB.  This has nothing to do with polarity or circuit functionality, the resistors are arranged in a particular way to avoid having bent leads touch each other and create unwanted shorts.

Vertical resistor installed with resistor body inside the silk screen.

Vertical resistor installed with resistor body inside the silk screen circle.

Installed resistors.

REV A NOTE: ROPT1 is an optional resistor.  The original A did not include this resistor.  If you want your unit to distort easily like the original Rev A you must insert a wire jumper here and short that space.  You can simply use a clipped resistor leg and solder it directly across.  If you want to limit the distortion you can install a 10K resistor which was added to the latter revisions.  Either way you must have something (short or resistor) in this space for your unit to work.

Diodes

elements42

Diodes are next.  They are bent and soldered like resistors however, there is one major difference: DIODES ARE POLARIZED DEVICES.

Components that are polarized have a positive and negative lead which must be inserted into the correct pads on the PCB.  These leads are the Anode (+) and cathode (-).

There are 4 diodes used in the FET/500 series main and meter PCB. There are 1N914, 1N4740, FDH333, and 1N4004.  Your diode will have its name printed on the diode itself. Look really close! On your diode you will notice one lead is marked with a line.  This line identifies the negative or cathode lead.  The silk screen also shows the diode with a line at one side which  indicates how the diode should be inserted.  Pretty easy!

Notice how the line align.

Notice how the lines align.

 Transistors

Transistor found in the FET/500.  L-R: TO92, TO39, TO92-3 (Rev F Only)

Transistor found in the FET/500. L-R: TO92, TO39, TO266 (Rev F Only). We could go a few different directions at this point, but lets move to transistors. There are many that look the same, they're not!

Scream

Most of the transistors are TO-92 types.  The most notable, are the 2N5457 matched Field Effect Transistors (F.E.T.).  These two transistors are what makes this circuit a F.E.T. compressor.  Q1 controls the gain reduction, and Q11 (Q10 on the Rev F) matched the GR meter to that FET.  If you've purchased a stereo set, you'll have one bag marked Q1 and one marked Q11 (Q10 for Rev F) each with two transistors.  Use the Q1 transistors for the Q1 position in each unit and the Q11 transistors for the Q11 position in each unit.

The Revision A also includes two J309 FETs.  These are used on the gain stages and are part of what gives the Revision A its unique sound.  FETs have three leads: Source, Drain, and Gate.

The rest of the TO-92 transistors are bipolar junction transistors (BJTs) and they three leads as well: Collector, Emitter, and Base.  To make it easy for you, the PCB silk-screen for all of the TO-92 transistors (FET and BJT) matches the package of the transistors.  Identifying the transistors is easy, their names are marked on their bodies.

TO-92 inserted.

Above shows a TO-92 inserted. The revision F includes two larger TO-266 type transistors.  These are used to drive the push-pull output.  They look identical, but one is a PNP and the other is an NPN.  One is active for the positive swing of the audio wave (NPN) and the other is active for the negative wave (PNP).  The NPN is Q8 and is the transistor labeled MPSW06.  The PNP is Q9 and is the transistor labeled MPSW56. The revision A and D circuits use a class A output.  So rather than the two transistors used in the revision F, they use a single T0-39 transistor.

Parts in the Q6 assembly (Rev A and D only).  L-R: spacer, TO-39 transistor, heatsink.

Parts in the Q6 assembly (Rev A and D only). L-R: spacer, TO-39 transistor, heat-sink. This transistor is a 2N3053 and is a BJT.  It comes with a couple of accessories.   It has a spacer, which will help keep it from buckling when adding the next accessory, the heat-sink.  This is a class A circuit and this transistor (Q6) gets HOT.  it needs this heat-sink and be aware of it when pulling the module from the rack.  That heat-sink can easily burn your hand. Insert the transistor by aligning the tab on the transistor with the tab on the silk screen.  The tab is what identifies the emitter, with the collector being furthest from the tab.  Place the spacer underneath the transistor and mount it tight to the PCB.  Press the heat-sink over the top of the transistor head.

Mounted Q6.

Mounted Q6 (Rev A and D only).

Top view.

Top view with heat-sink removed. The meter PCB includes two LM317.  These look like transistors because they are in a TO-92 package, but they are not transistors.  They are voltage regulators.  You can learn more about these devices on-line, but for the sake of this build they are inserted just like the TO-92 transistors.

Capacitors

Let’s talk capacitors! The images that follow cover the types found in FET/500.

caps

These are the basic types of capacitors in your kit. Lets start by installing the film and ceramic capacitors.  These are the ONLY capacitors in the kit that are non-polarized, meaning they can be inserted in either direction. The ceramic capacitors are small and blue.  If you do not have a DMM that reads capacitance (farads), you can read the value on the capacitor body (look close!).  The first two numbers are the first two numbers of the value, and the third number indicates the number of zeros you add to the end.  There may or may not be a letter at the end which indicates tolerance.

270 = 27 pF
221 = 270 pF
104 = 100000 pF or 0.1uF.

Next we'll install the film caps.  There are two types: grey Vishay and and cream Kemet.  The cream Kemet caps are used in any position in the circuit where a film cap is used to couple two stages of the circuit.  This makes them important, and we've selected these because we like what the do for the overall sound of the circuit.

The cream Kemet caps are used in the following positions:

Revision A: C1, C2, C8 (0.15uF)
Revision D: C1 (1uF), C8 (0.15uF)
Revision F: C1, C10 (1uF)

All other film positions use the grey Vishay caps.  If you don't have a DMM that reads capacitance (farads), you can read the value on the body.  Depending on the brand and value, the capacitance might be displayed in uF, nF or pF (rarely).   To convert, simply move the decimals 3 places to the right as you move from uF to nF to pF.

0.0001 uF  =  0.1 nF  =  100pF

A calculator is available here: http://www.calculator.org/property.aspx?name=capacitance

Note that a value listed as 4n7 means 4.7 nF or 4700 pF.

Polarized Capacitors

All of the of the electrolytic and tantalum caps we'll be using are polarized.  Meaning they must have a positive (+) and negative (-) lead that must be install correctly.  The negative lead is marked with a "-" and an arrow pointing to the lead.  In addition, the positive lead is longer.   On the PCB the positive pad is marked with a "+". Start by inserting the power supply filter caps.

There a couple types of 100uF capacitors in your kit, Nichicon HE and United Chemi-Con KZE series.  The Nichicon HE capacitors are used for the filter capacitors.  You can read the brand and values on the body of the capacitors.

These filter caps are:
Rev A - C2500, C2500
Rev D - C250, C260
Rev F - C25, C26

elecinsert

Nichicon HE being inserted. Note the polarity. For the rest of the 100uF caps you'll use the United Chemi-Con KZE caps.   Depending on the revision you are building, you'll have a mix of Chemi-Con KZE, Panasonic FC, and Nichicon PW electrolytic caps left.  Simply follow the BOM to see where the caps are placed.  Note the polarity when inserting these caps. Tantalum caps are polarized as well.  Their positive lead is marked with a "+" and a line pointing to it. All revisions include two 6.8uF tantalum caps in the side-chain.  For all revisions these are C19 and C20.

Tantalum with the positive lead identified

Tantalum with the positive lead identified.

C19 and C20 install.

LEDs

There are a number of Light Emitting Diodes (LEDs) used in the FET/500 project.  Two are on the main PCB and 21 are used on the meter PCB.  The two on the main PCB should be mounted before the pushbutton switches.  Although these are in fact through-hole LEDs, we'll mount them like surface mound parts. LEDs are polarized.  The long lead is positive and the flat side of the LED ridge is aligned with the negative lead.  On the PCB the negative pad has an arrow pointed towards it with the cathode line slowest to it.

elements18

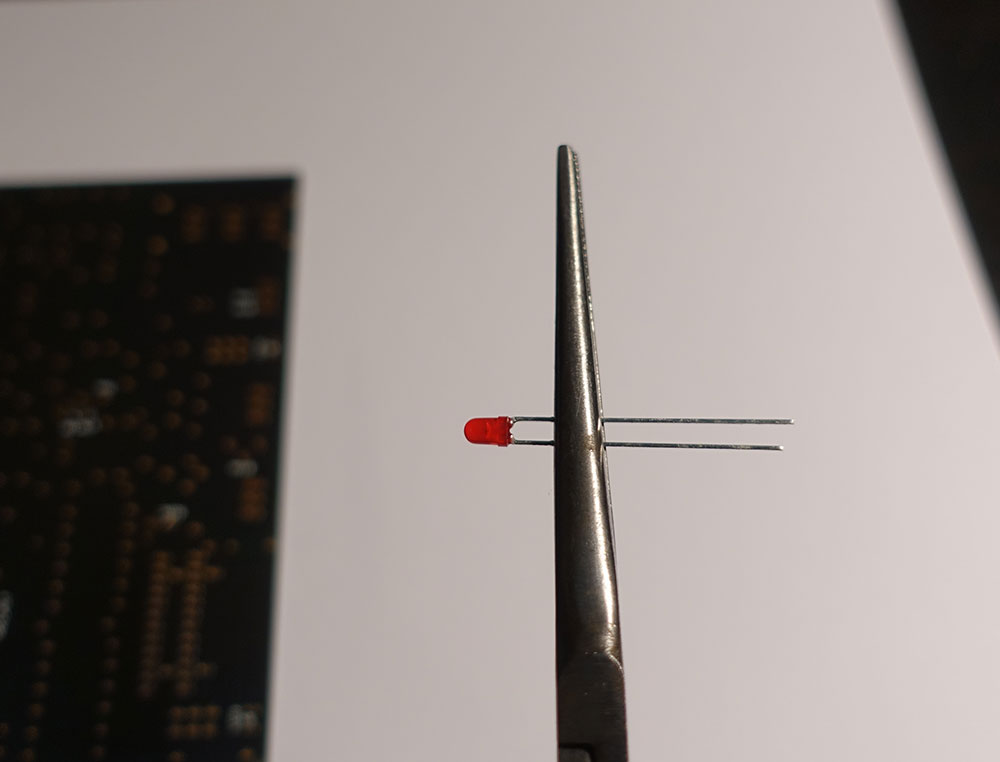

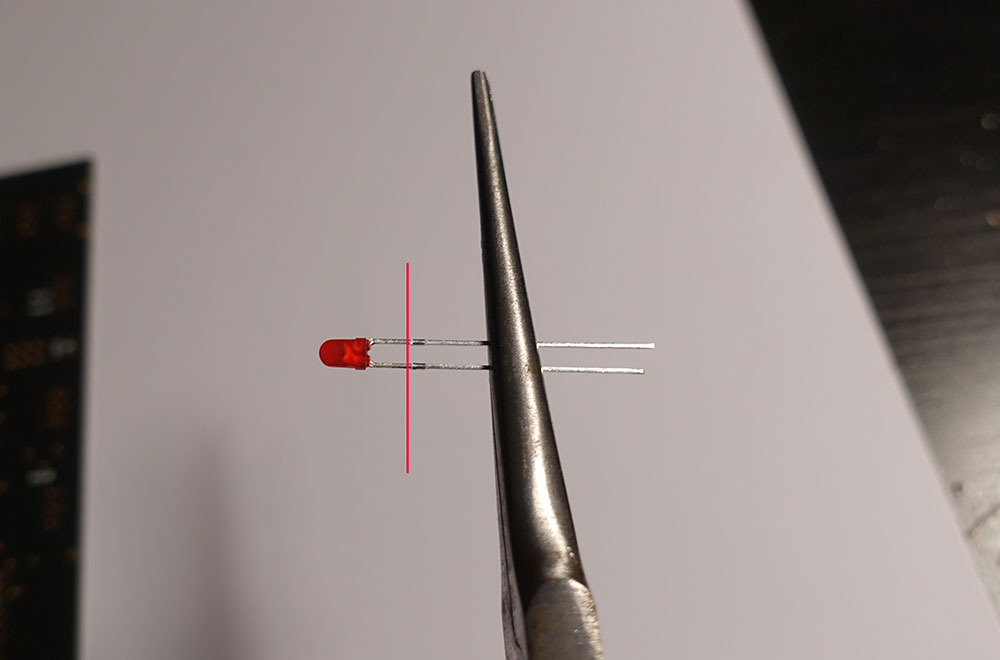

LED orientation is shown above.   Since we'll be cutting the LED leads to mount them, it's helpful to know that the negative lead looks like a flag inside the LED. The LEDs on the main PCB are bottom mounted.  Start by trimming the leads right below the flat part on the leads.  Insert the LEDs into the PCB jig making sure the negative lead (flag lead) lines up with the negative pad.  Again, this is the pad the arrow points to and has a line.  tilt the PCB onto the PCB.  It may or may not help to mount the attack and release pot.

LEDSLide

The faceplate jig does not sit flush to the PCB.  There needs to be room for the bracket.  The pots will help align.

LEDpreinstall

Now carefully solder the LED leads to the pads.  You don't need a ton of solder.

Done!

Here is a short video where Gabe from Hairball gives some type on LED soldering in the FET/500.

Relays

There are two relays that control the true bypass and they need to be inserted correctly.  If you look at the silk screen you'll see that one corner of the relay screen has a dot.  Simply align the two dots on the relay with this dot.

relayinstall

Dip-8 and DIP16 ICs

The main PCB has an integrated circuit (IC) that has 8 leads, 4 on either side (DIP-8).  The meter PCB has two DIP-8 and two DIP-16 (16 leads/8 on each side) ICs.  The IC name is on the IC body.  DO NOT mix up the TL071 (main PCB) and TL072 (meter PCB) ICs, they are not interchangeable. These must be installed correctly and in the correct location.  The silk-screen has a semicircle on one end.  Your IC will either have the same semicircle or a dot.  Insert the IC so the semicircles align or the dot is on the same side as the semicircle.

ICInstall

Notice the dot is on the same end as the semi-circle on the silk screen.

Trimpots

There are 3 styles of trim pots used in the FET/500 build.  The style type is a 4 digit code on the trimpot.  The 3386 type is the flat square trim pot with the white plastic screw trimmer.  There are two and they are used on the meter PCB for hight reasons.  The 3266 are the smaller tall type and they have a side adjust trimmer.  There are two and one is used on the main PCB as the Qbias trimmer and the other is used on the meter PCB for zero adjust.  Note the meter zero adjust is mounted on the bottom of the PCB.  The last is the larger 3296 has top adjust trimmer.  There are two of these on the main rev A PCB and three on the main Rev D and Rev F PCBs. Their values are indicated on the trimmers with a three digit number.  The first two numbers are the value, and the next indicates the number of zeros.

101 = 100Ω
202 = 2K Ω
103 = 10K Ω
104= 100K Ω

FET/500 Trim Pots

FET/500 Trim Pots L-R: 3386, 3266, and 3296. You can also test them with your DMM by setting it to read resistance (Ω) and clipping your leads to the two outer leads.  This will give you the total resistance regardless of the trimmer position.  For ease of calibration, we recommend setting the trimmers to the mid way position. For the 3386 type this is easy to do since they have a single rotation and stops (like a potentiometer).  However, the 3266 and 3296 types rotate multiple times and to not have stop (if you listen close they "click" when they reach the end).  To set them mid-way set your DMM to read resistance (Ω) and place a lead on the middle lead and one of the outer leads.  Then rotate the trimmer until your DMM reads 1/2 of the total resistance.  For example the 2K would read 1K.

FIG 4- 2KΩ trim pot set to the center position

2KΩ trimmer is shown set to the center position.

Installed trimmer.

Frontpanel Controls Switches

There are two push button switches included with your kit.  One is for the bypass (SW3/red cap) and the other is the Gain Reduction OFF (SW1/black cap).  The bypass completely bypasses the compressor.  The GR OFF turns off the gain reduction but still passes the signal through the amplifier stages of the unit. Simply press them into place and solder them so the fit tight to the PCB.

Pots/Grayhill Switches

The ratio switch is a two deck, six position Grayhill.  Before installing the Grayhill you need to install the two graphite stops. With the mounting pins facing down, the stops are at the 12 and 6 o'clock position. It will help with knob mounting if you insert the pins with the flat of the shaft pointing the 7 o'clock position as pictured.  Once the stops are fully inserted, place the retaining sticker over the shaft.

stops

Stop and shaft position shown above.

Potentiometers and T-pad

The t-pad is the input control and it is the 3-deck pot.  The output is 250K for the Rev A/D and 100K for the Rev F.  The attack is 25K and the release is the 5M ohm pot.  The values are written on the rear of the pot.  Important: the grey BI pots (attack, output, and sometimes T-Pad depending on when you bought your kit) have anti-rotation lugs which stick out slightly past the surface of the L-brack. This will cause your pots to sit slanted when the nut is tightened. You need to trim off about 1/3 of the lug so it sits just below the bracket. Don't worry if you trim off too much or trim it all off. They are pretty redundant. It's like wearing a belt with suspenders.

Control Pots

They are simply mounted flush to the PCB.  Here are all of the front controls mounted with the Grayhill retaining sticker in place.

front-cantrols

Note the QBias that sits between the Attack and Release pots.

Header

Install the 10 pin header on the top side of the PCB.

Press it firmly down so it sits flush to the PCB.

Press it firmly down so it sits flush to the PCB.

Transformer

The CM-3837-1 input transformer is our version of the famed UTC O12.  We believe it's the most accurate version.  Inside the box you'll find a little white spacer.  Tape this to the bottom of your transformer.  It'll help prevent any shorts.

Spacer taped in place. Spacer taped in place. Now install the transformer by aligning pin 1 with the pin 1 on the PCB.  Pin one on the transformer and PCB are identified with a dot.

Pin 1 alignment.

To install the output transformer, grab the two 1" #4-40 screws, #4 flat washers, and #4 nuts from the hardware kit. Place a flat washer on a screw and insert it into the non wire side of the transformer.  Mount the transformer so the wires are on the bottom of the PCB and secure it in place with the nut at the bottom.

outputmounting

Note the wires are on the bottom side of the PCB. Now trim the wires to an appropriate length and solder them to the pads following the color codes.

Bottom of the PCB.  Note the wires are trimmed shorter for cleanliness and to avoid unwanted circuit noise.

Bottom of the PCB. Note the wires are trimmed shorter for cleanliness and to avoid unwanted circuit noise.[/caption]   Your main PCB is now stuffed!

VERY VERY IMPORTANT: Although we call the smaller PCB the "Meter PCB", it does more than just control the metering.  It also supplies the negative rail voltage.  Your FET/500 WILL NOT work without the meter PCB stuffed and connected.

stuffedpcb

Meter PCB

Assemble the meter PCB using the same steps used to stuff the main PCB.

topmeter

The meter PCB has a couple components you have not yet encountered.  One is the axial inductors,L200 and L201.  These are the same value and are non-polarized.  Treat them just as you would resistors.  The other is the re-settable fuse located in R219.  It is also non-polarized.  You'll need to pinch and wiggle it a little to get it in.   The header is a tight fit but you must get it in flush to the PCB. There are four BOTTOM MOUNTED

bottommount

Note the fuse, connector, link jack, and R55 are all mounted on the bottom of the PCB. Mount the LEDs the same as you did on the main PCB by surface moaning and using the JIG.  We recommend only mounting 4 at a time.

Meter Modes

The meters operate in "DOT" mode by default.  This means only the top active LED is lit.  The opposite is "BAR" mode which is more traditional and shows all active LEDs.  We chose DOT mode as the default for both the GR and VU meter to keep the current consumption of the module inside of and acceptable value (150mA).  If you have a rack with more available amperage per slot, or you have some modules that use very little amperage, you can choose to operate one or both meters in BAR mode be linking the two circular pads.  With no link in place, or the square and circle closest to it linked, the meter will operate in DOT mode.  There is a DOT/BAR jumper for each meter at the end of each of the LM3916 ICs.

Meter in dot mode.

Meter shown in dot mode.

Solder jumper here for BAR mode.

Solder jumper here for BAR mode.

Final Assembly

Start by mounting the two 1/4" standoffs on the L-bracket using the two #4 undercut screws.

Screwed in through the bottom with the #4 undercut screws.

Screwed in through the bottom with the #4 undercut screws. Now mount the main PCB and Meter PCB and secure it into place with two #4 nuts.

finished

Secure with nuts, meter board unmounted. You can mount it now. To mount the meter PCB simply align the 10 pin connector to the header and press it into place.  It will wobble a little but the faceplate will eventually secure it in place. We will continue with the final assembly, but now is the point at which you would want to calibrate while the q-bias is accessible through the bracket.  It's time to plug it in!

qbias

To calibrate now (which you should) scroll to the bottom. Once you are done calibrating slide the front panel onto the unit and secure the pots and Grayhill with their supplied nut.  There may not be enough depth to use the toothed washers, that is fine. We recommend not using the T-Pad nut.  You can use it but it will protrude from under the knob and look ugly.  It's not really needed.

knobnut

Now you can attach the knobs and secure them with a 1/16 hex key.  You'll have to float the t-pad and Grayhill pots a little off the front panel  if you want all the knobs to be even.

knob-alignment

Knob/Potentiometer Rotational Torque Adjustment

You may notice that your controls have different rotational torque. Some may have a lot of physical resistance as you turn or feel "tight", while others have a "looser" feel. It's a misconception in pro-audio that tight turning pots are better quality pots. The rotation torque has nothing to do with quality, in fact, it's often the opposite. We select the best pots based on things like rated life-span, end of track noise, and manufacturer reputation. We prefer BI Technologies as a winner in all categories. Unfortunately, they do not make the 5M pot necessary for the release control. Since Bourns is our second choice, we use a Bourns pot in that position. The Bourns pot however, has a much tighter rotational torque and can feel odd when paired with the BI. This is a common issue in pro audio faced by many manufacturers. You'll never get the BI pots as tight as the Bourns. What we like to do is match the output and attack controls to the 3-deck BI input T-Pad. The T-Pad is a little tighter because it's a stacked pot.

Here is a little trick used by many high-end manufacturers. Start by locating the bag in your kit containing the rubber o-rings. Slide two to three o-rings over the pot shaft. In this case, we're using the output pot as an example.

Push them tightly against the shaft bushing.

Now place the knob on the shaft and push downward on the knob and you secure it in place with the set screw. This will squeeze the o-rings against the bushing adding rotational torque.

You'll have to experiment. Too much pressure may make the torque feel springy and not enough won't help. We've found adding three o-rings with the right pressure to the input, output, and attack, can make them feeel almost identical to the release.

Calibration

If you don't have a 500 series edge card extender, you'll calibrate your FET/500 unit inside your rack.  The trimmers are accessible, but you will need to keep a few slots to the right open.  Perform the calibration with the faceplate removed and the unit warmed up for 20 min.  You may want to consider re-calibrating after a week of use/burn-in. At no point should your unit by in full by pads (RED Switch) while calibrating. I'll explain the calibration in two methods.  Method one assumes you have the proper tools and understand basic calibration procedure.  Method two is for newbies with only a 500 series rack, DMM and DAW.  Method two will be in video format.

Calibration Method 1: I'm fancy, I know what I'm doing

Step 1 - Qbias Adjustment This is the most important adjustment since it actually affects how your unit compresses.  In this step we're going to set the FET slightly into conduction.

  • Set Input and Output to mid way
  • Set Attack and Release fully clockwise
  • Ratio at 20:1
  • Put unit in GR Off mode
  • Apply a 0dBu (0.775 VAC) 1KHz signal to the FET/500 input
  • Observe the output level and turn the Qbias trimmer counter-clockwise until the output level reaches a maximum value and no longer increases.  The FET is now in "pinch off"
  • Adjust the Output control so the FET/500 output reads +11 dBu (2.75 VAC)
  • Rotate the Qbias clockwise until your output drops by 1 decibel to +10dBu (2.45 VAC),  it will happen quickly

  Step 2 - VU Meter Calibration:

  • Set Input and Output to mid way
  • Set Attack and Release fully clockwise
  • Ratio at 20:1
  • Put unit in GR Off mode
  • Apply a 0dBu (0.775 VAC) 1KHz signal to the FET/500 input
  • Adjust the Output control so the FET/500 output level reads +16 dBu (4.88 VAC)
  • Adjust the VR1 "Gain Trim" on the meter board so the RED "Peak" LED starts to illuminate.
  • Adjust the Output control so the FET/500 output level reads -6 dBu (0.388 VAC)
  • Adjust the VR2 "VU Trim" until the -10 LED LED starts to illuminate.

Remember that this meter reads 0dBu = +4dBu like the original units.  So the -10 dBu LED is equal to -6dBu.   Step 3 - Gain Reduction Tracking

  • Set Input and Output to mid way
  • Set Attack and Release fully clockwise
  • Ratio at 20:1
  • Deselect GR Off so your unit is now in GR mode
  • Apply a 0dBu (0.775 VAC) 1KHz signal to the FET/500 input
  • Adjust the Output control so the FET/500 output reads +0 dBu (0.775 VAC)
  • Put unit in GR Off mode
  • Adjust the Input control so the output reads +9 dBu (2.18 VAC)
  • Repeat the last 4 bullet points until you see an output of +9dBu in GR OFF mode and an output of 0 dBu in GR ON mode
  • With the unit in GR OFF (9 dBu output) adjust the "0 Adj" trimmer located on the front panel near the input knob so the 0 illuminates
  • With the unit in GR ON (0 dBu output) adjust the "Tracking Adj" located on the main PCB and accessible through the meter PCB so the -9 LED illuminates
  • Repeat the last 2 bullet points until you see GR meter dropping between 0 and -9 just like your output level.

  Step 4 - Signal Preamp Linearity (Rev D and F Only)

  • Set Input fully CW and Output to "18"
  • Set Attack and Release fully clockwise
  • Ratio at 20:1
  • Put unit in GR Off mode
  • Apply a -30dBu (0.0245 VAC) 500Hz signal to the FET/500 input
  • Adjust the "Dist Adj" located on the main PCB and accessible through the meter PCB for lowest THD

    Method 2: Calibration inside your rack with a DAW and DMM

 We did not include step 4 (Signal Preamp Linearity) because it can not be done with basic tools.  It is not an overly important adjustment.  It adjusts a 100Ω trimmer for lowest THD.  Generally, at best this is 0.05% and at worst it's 0.1%.  Both of which are fine.  There are a number of free programs you can download onto your computer that can use your A/D interface to send a signal and measure THD.  Simply download and install one of those and follow the step 4 instructions above.

If you find a program that is free and works well, send us an email and we'll post it here.

You're done!

Having a problem?  Please try the GroupDIY help thread for this build.

Note about the GR Meter

The GR reduction meter has an operates like the Analog VU in that the Red SLAM LED is just the + right side of the meter.  If you twist the zero adjust you'll see you can go into the red as it's not separate, but an extension of the GR meter.  Putting the unit in SLAM pegs the analog meter far right which means in the LED version it pegs it to the top.  In SLAM mode GR metering is jittery and inaccurate, just like the analog meter.

Rev D done!

500 Series Racks with Pin 6 "Link" Connected By Default

If you have a V1 PCB and a rack which has all connector pin 6 connected by default, having two FET/500's in your rack will cause them to operate in link mode by default.  99% of racks do not have pin 6 connected by default.  The only rack we currently are aware of that does this, is the newer API lunchbox racks with the DB25 connectors on the rear.  If you own any other lunchbox, it's safe to assume yours does not.  If you want to be sure, simply set your DMM to read resistance (Ω) and measure between pin 6 of any two modules in your rack (count 6 down).  It should be infinity/overload.  You're unit does not need to be powered on.  In fact, for safety reasons please unplug it.

Count 6 pins from the top of the edge connector.  These pins are not linked.  Note:  This is an older non-DB25 API rack and these units are NOT connected by default.  This means not trace cutting is needed.

Count 6 pins from the top of the edge connector. These pins are not linked. Note: This is an older non-DB25 API rack and these units are NOT connected by default. This means no trace cutting is needed. If you do have a new API lunchbox with DB25 connectors, you'll need to cut the trace on the FET/500 PCB that connects to pin 6.  This does not effect your unit in any way and your front panel linking will still work.  This pin 6 trace is a redundant trace that is not needed.  Simply take and x-acto style knife and score a V int your PCB and break the trace. The trace in on the top/component side of the PCB.  It's the 6th pin from the top.

Not that pin 3 and pin 5 are not used in the FET 500 so those spaces are blank.

Note that pin 3 and pin 5 are not used in the FET 500 so those spaces are blank.

This is on the top/component side of the PCB.  Don't be shy about cutting it.

This is on the top/component side of the PCB. Don't be shy about cutting it. The newer DB25 API Lunchbox actually have 0Ω resistors connecting the pin 6s.  If you look inside you can see them labeled "Comp Link".  If you don't want to cut a trace on your PCB, you can simply cut out or desolder this resistor.  If you have your FET/500s in space 1 and 2, cut out the resistor that sits in the "Comp Link 1-2" spot.

0Ω resistors present in the API Lunchbox with DB25 connectors.

0Ω resistors present in the API Lunchbox with DB25 connectors.
